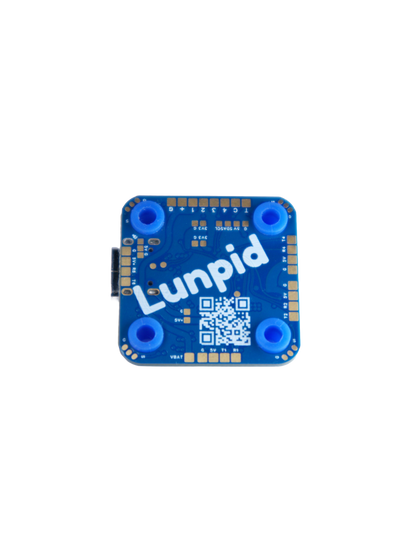

FC Bastille Race

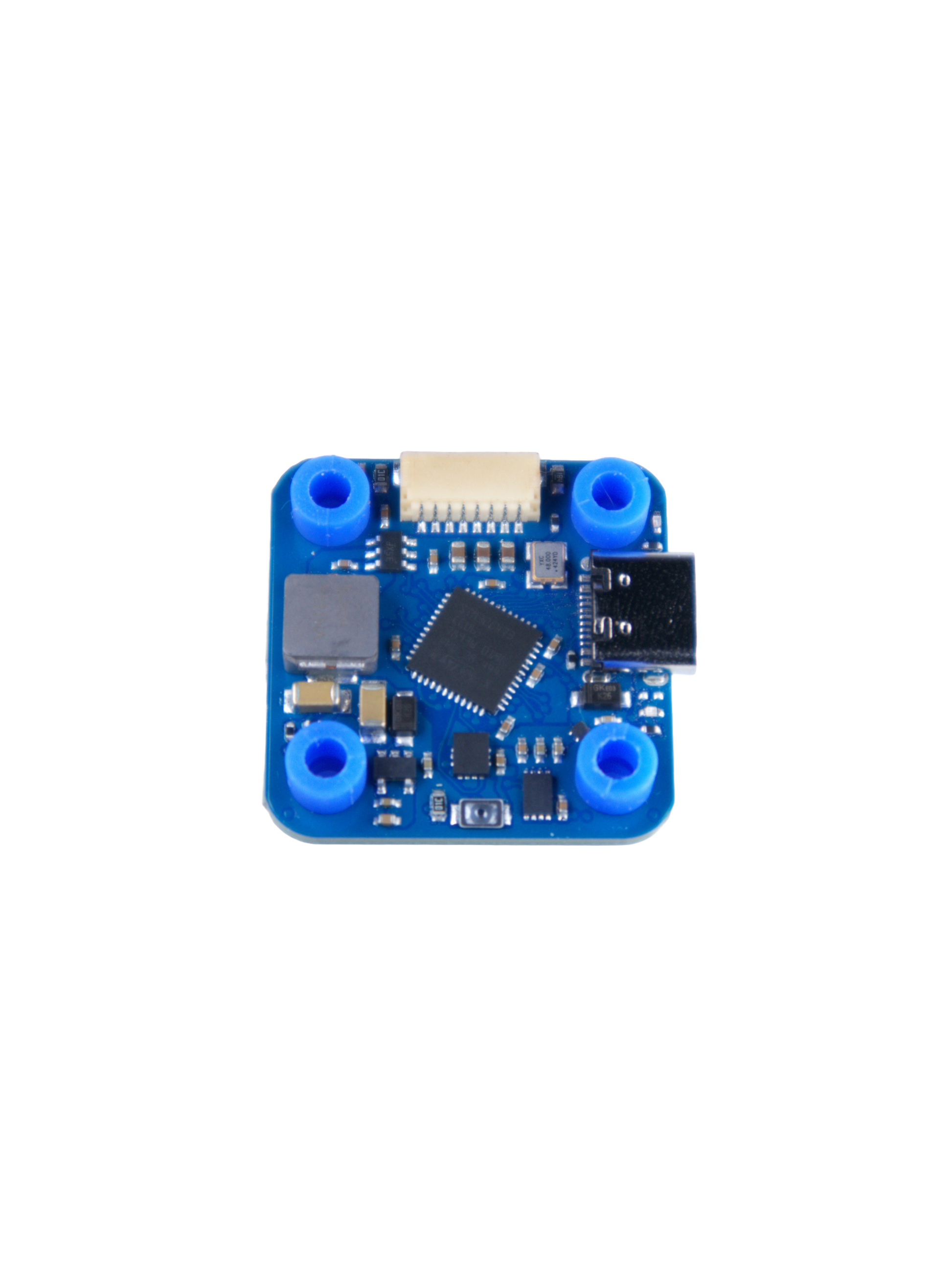

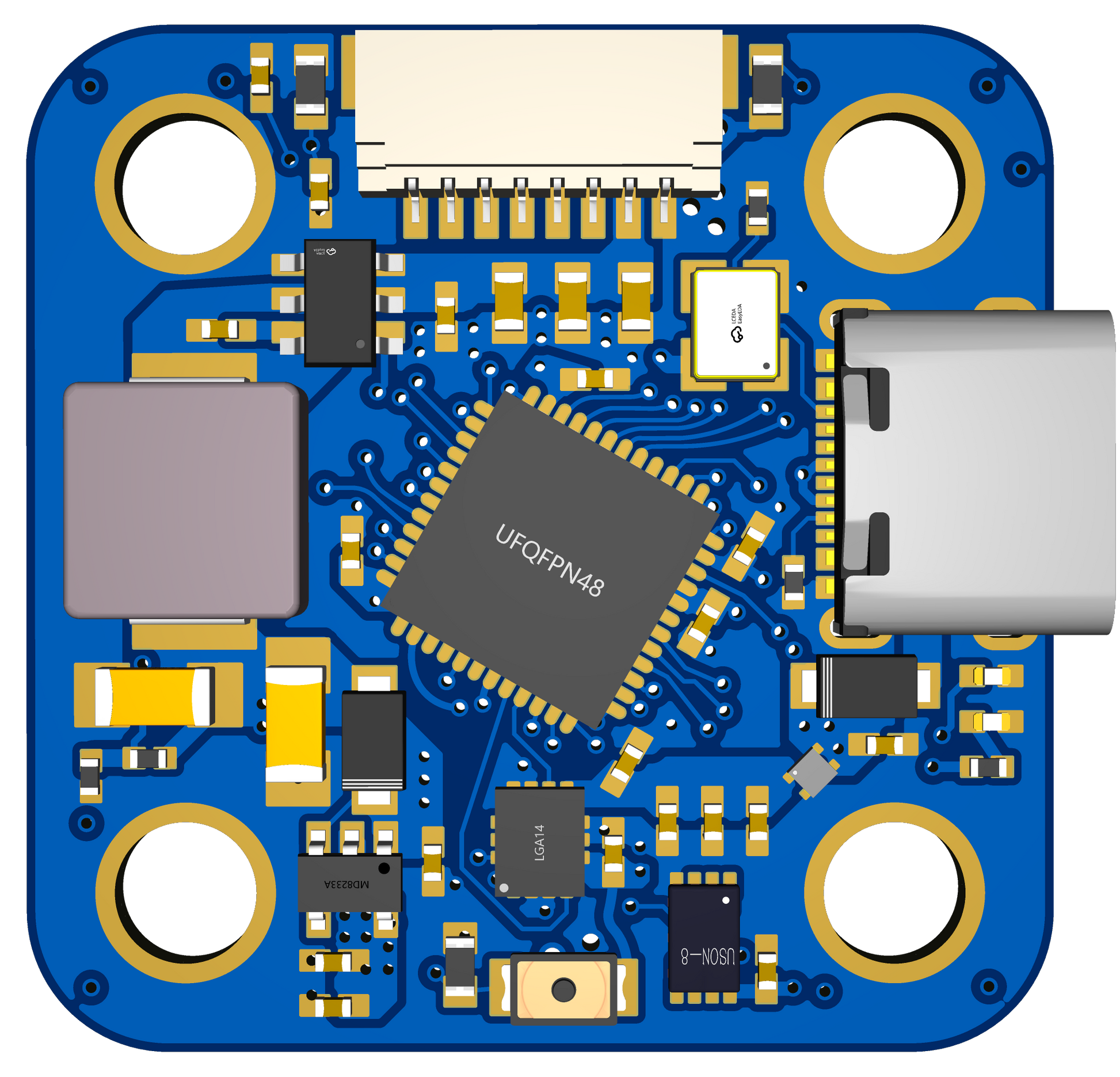

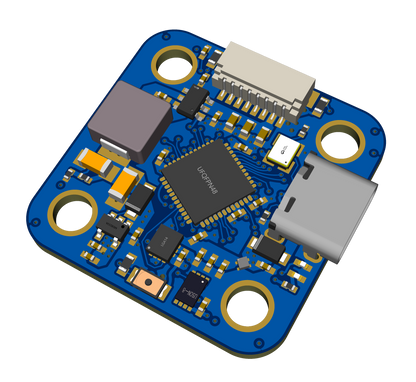

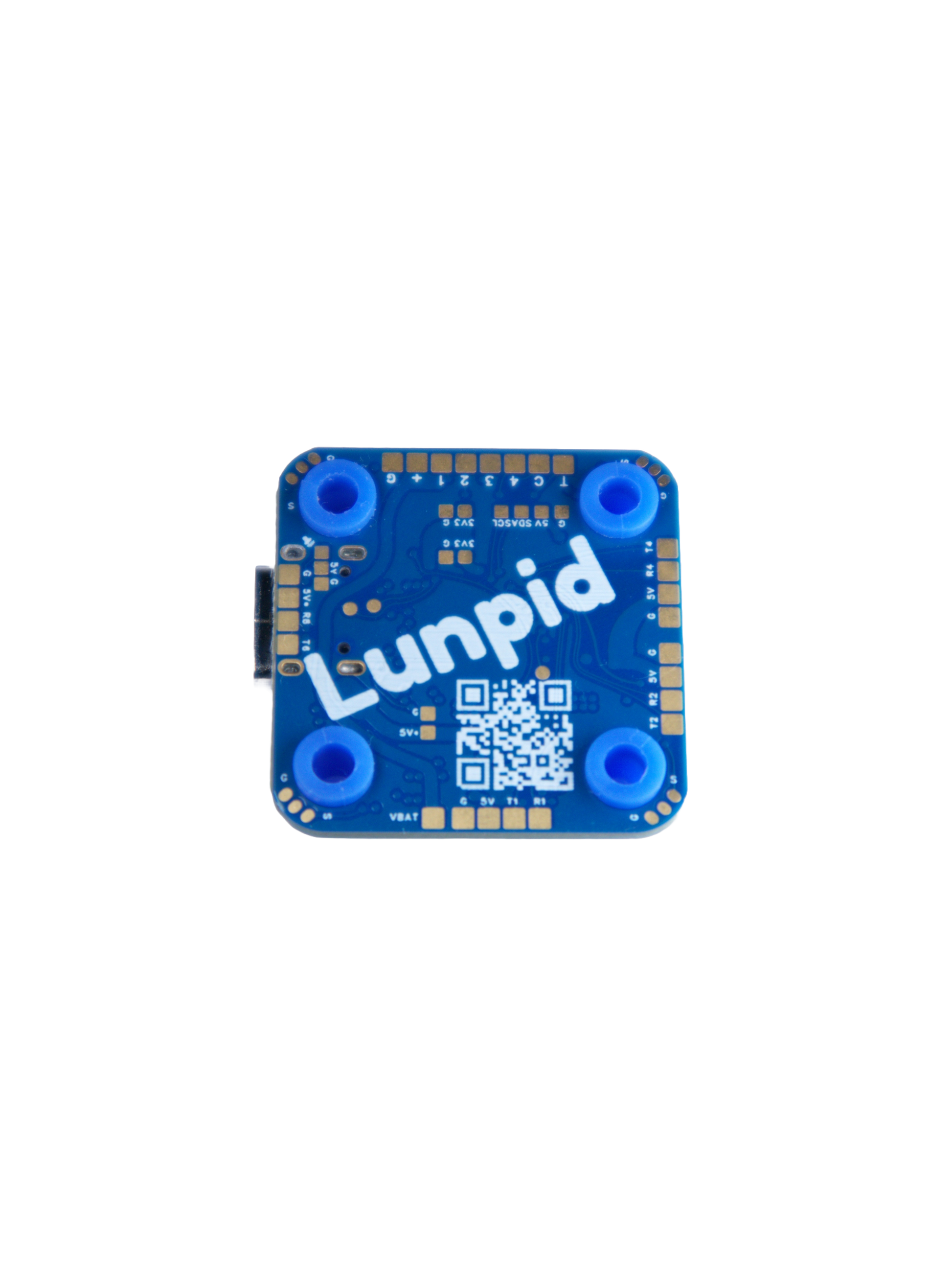

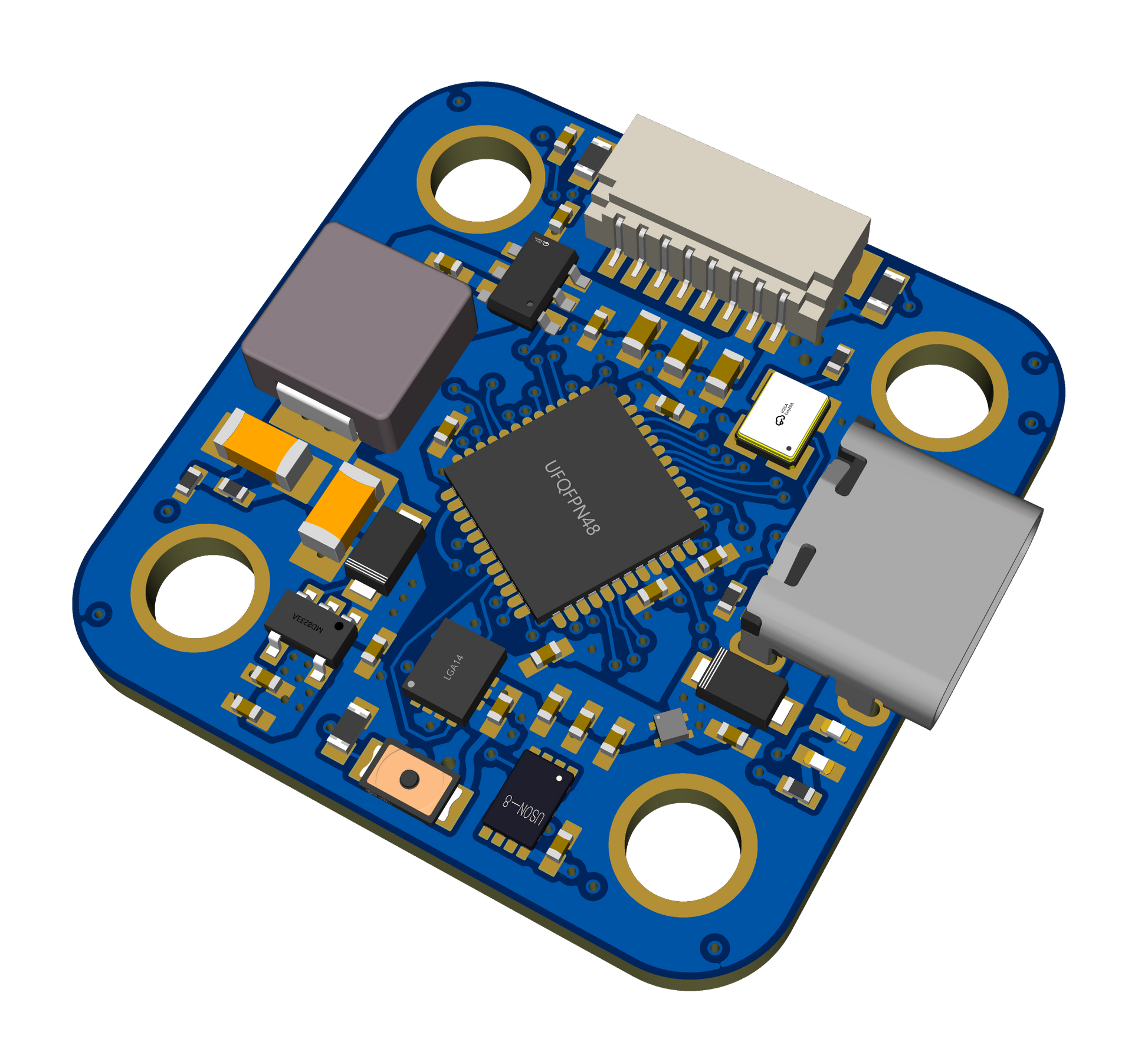

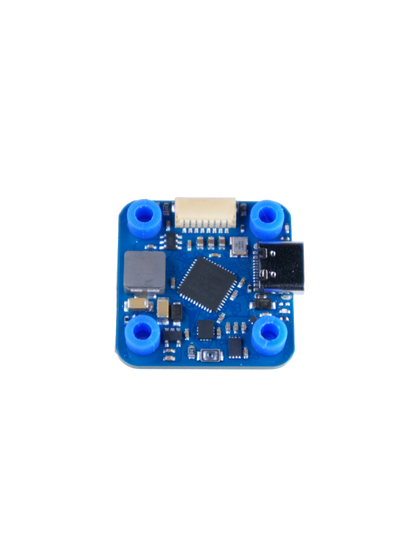

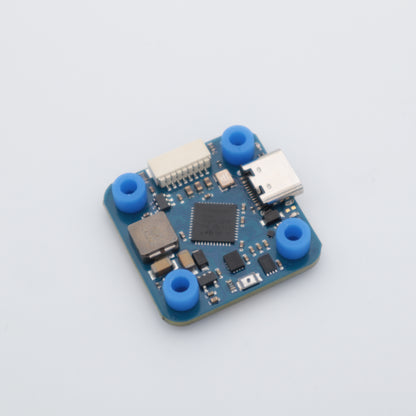

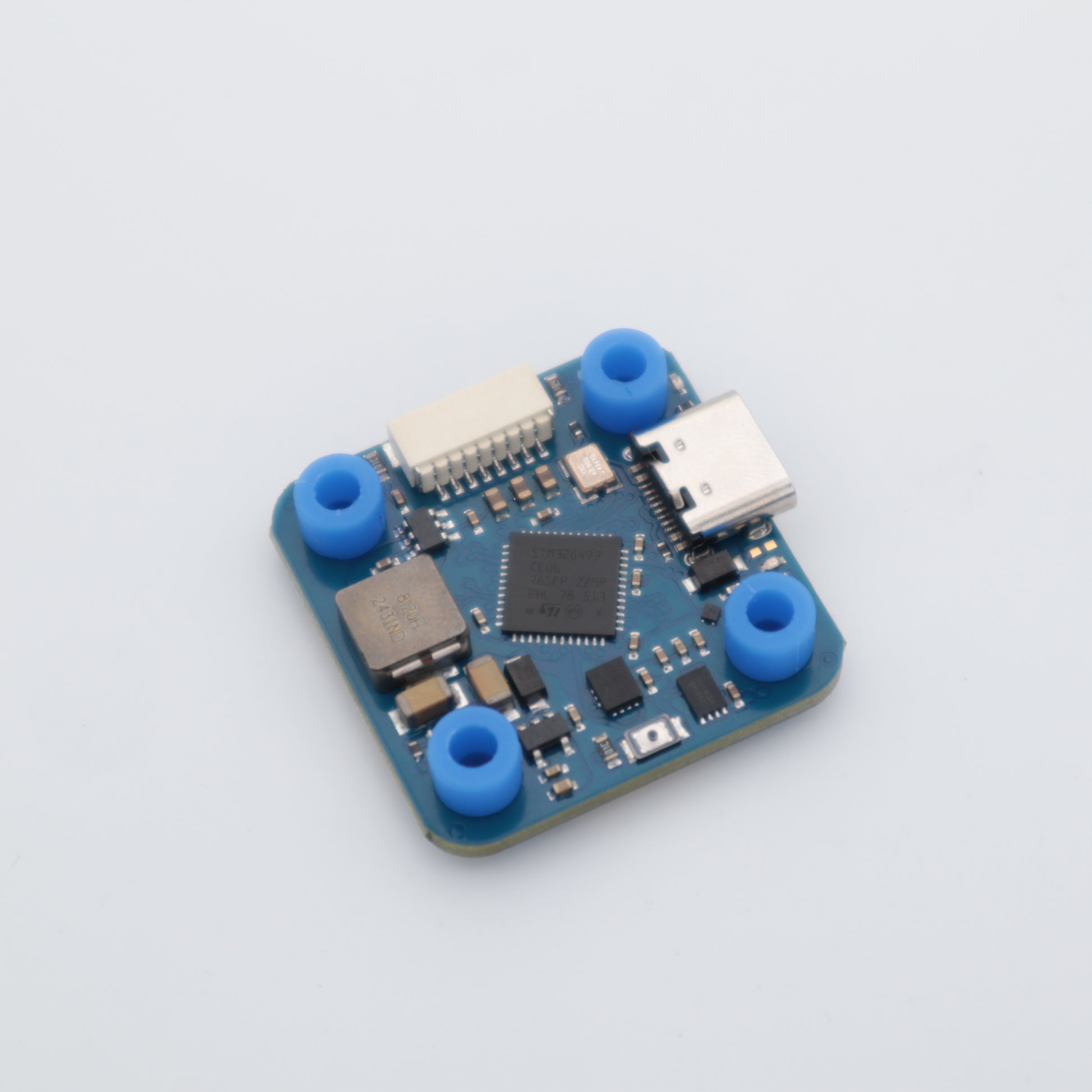

The FC Bastille Race is a high-performance FPV flight controller engineered for pilots who demand speed, precision, and reliability. Built in a compact 20×20 mm format, it pairs a powerful STM32G4 processor with a precision ICM-42688-P gyro on a dedicated low-noise supply for clean gyro data and stable flight performance.

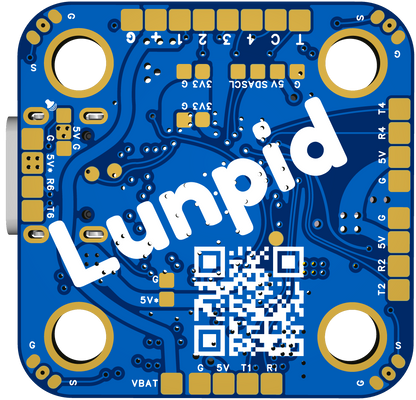

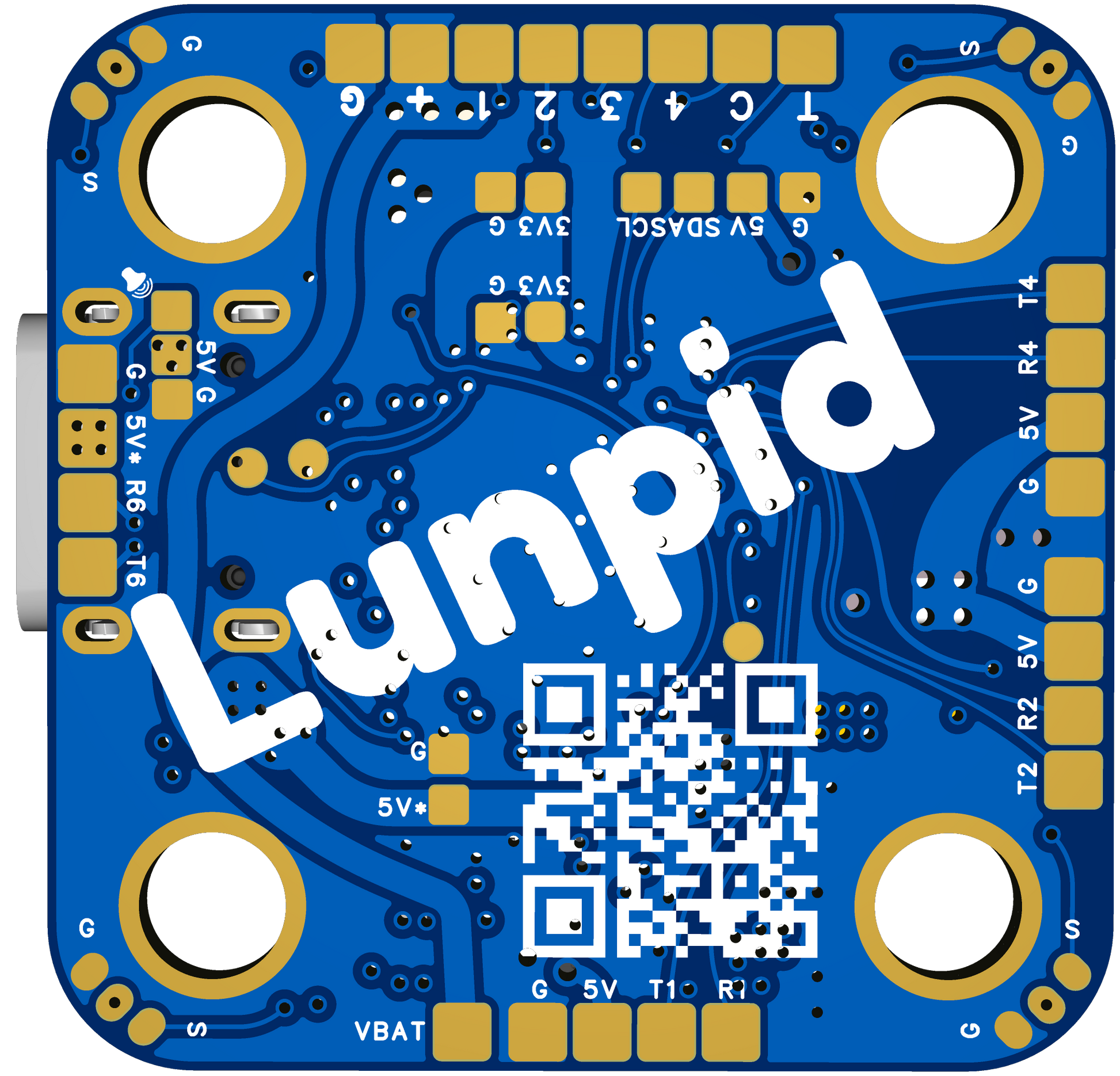

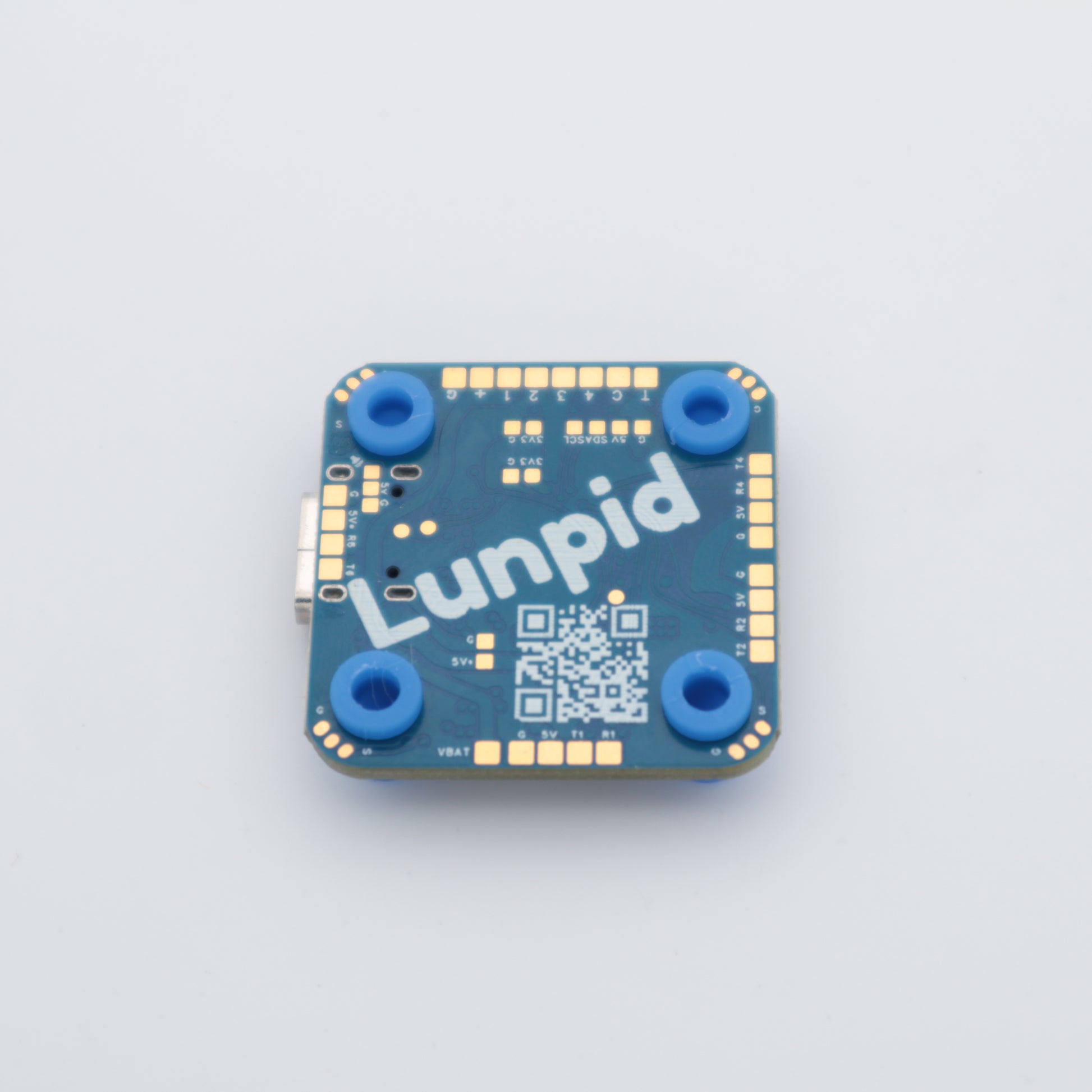

Supporting a 2S to 12S (6 V–51 V) voltage range, it includes a 5 V/3 A BEC for race VTX power and VBAT passthrough for freestyle VTX setups. With 5 UARTs + 1 I²C, a 3.3 V output, HD OSD, and a 16 Mbit Blackbox, it delivers full connectivity and easy integration. All solder pads on one side make clean, fast builds a breeze.

Key features:

• 20×20 mm compact layout – ideal for lightweight builds.
• 2S–12S wide voltage support.
• STM32G4 + ICM-42688-P – optimal performance and stability.

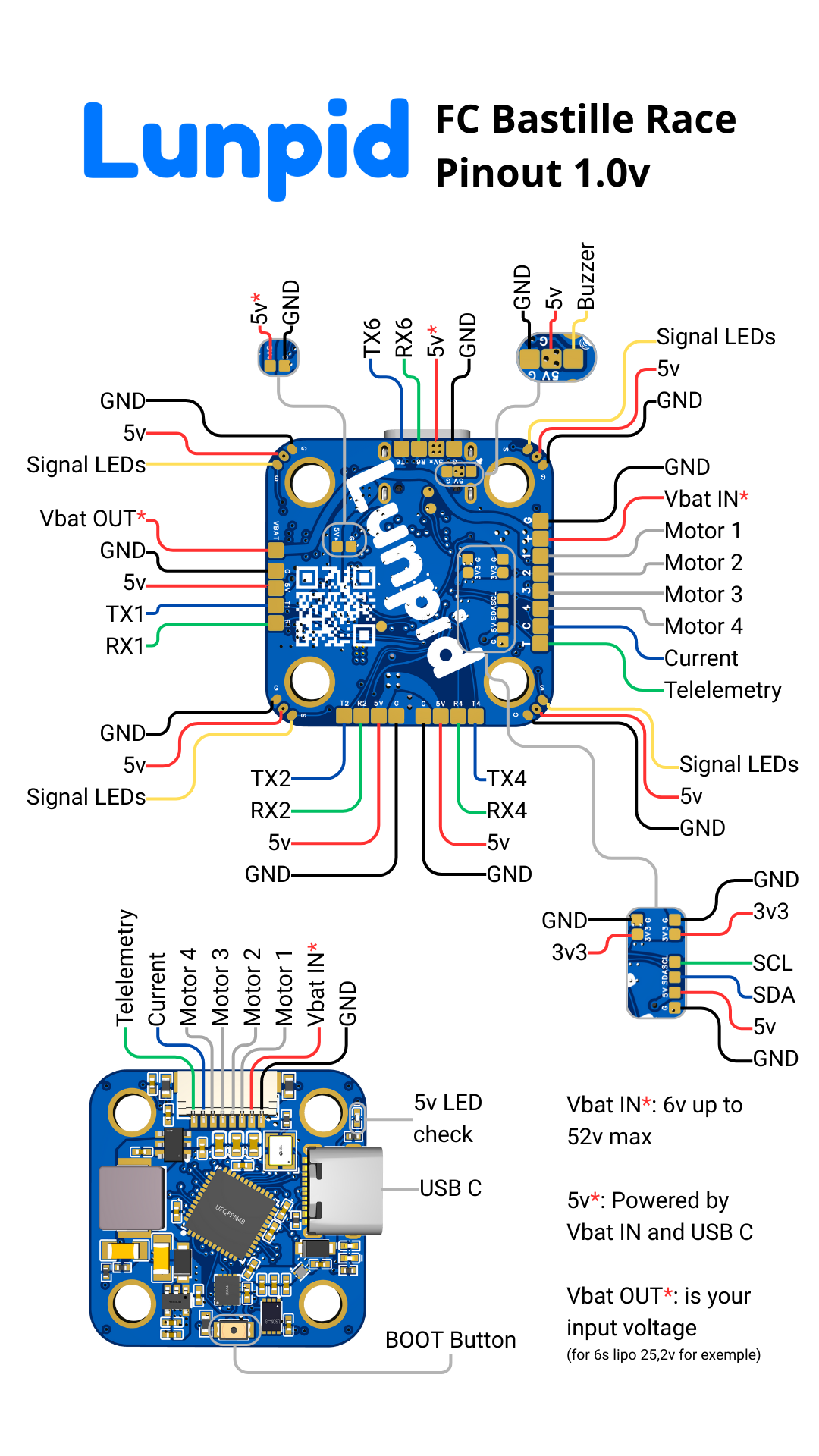

• 5 UART + I²C, HD OSD, 16 Mbit Blackbox – full connectivity.
• 5 V/3 A BEC + VBAT passthrough – reliable power for VTX gear.

What’s in the box:

• 6 × Damper M3x7.5mm
• FC to ESC cable

Documentation
