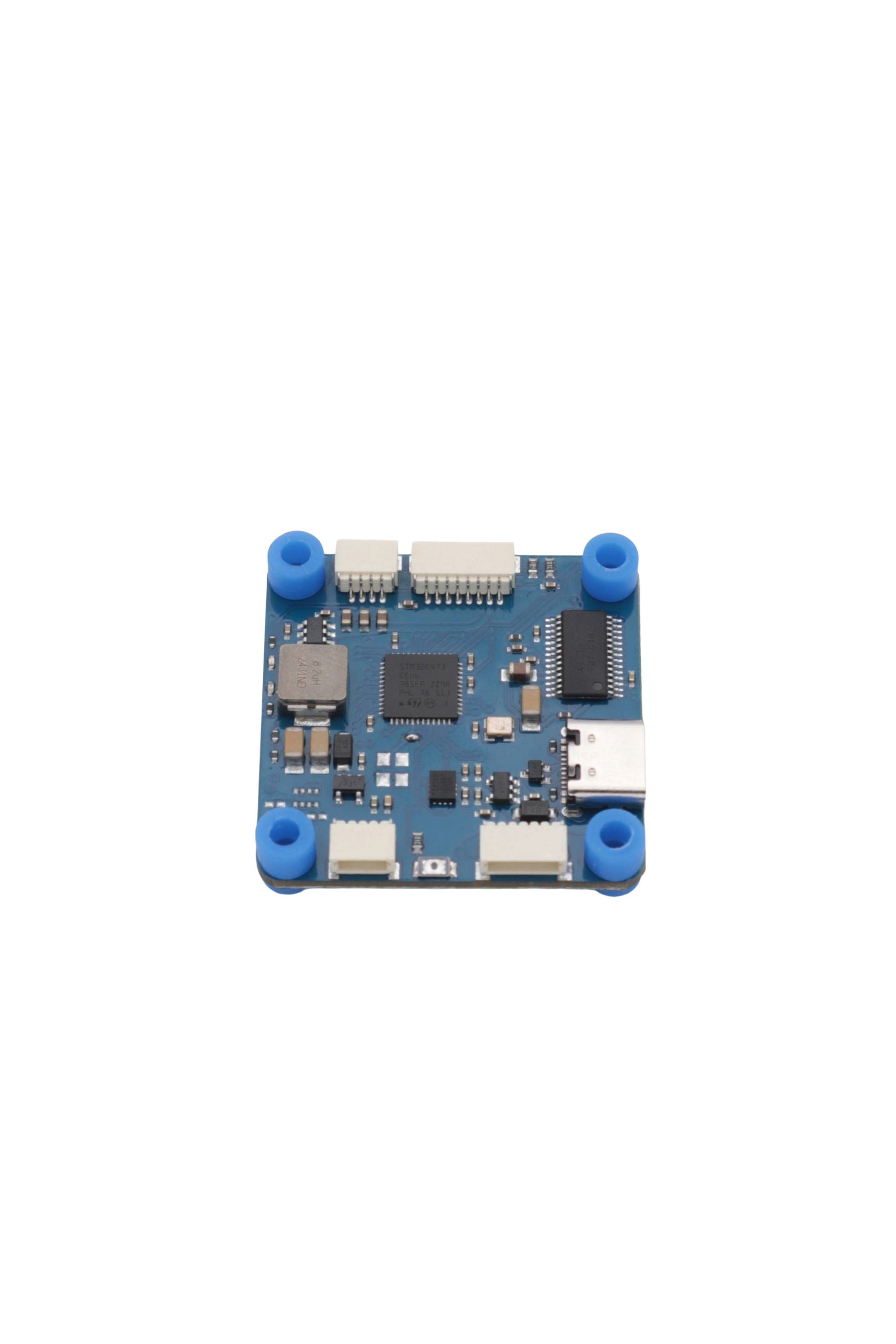

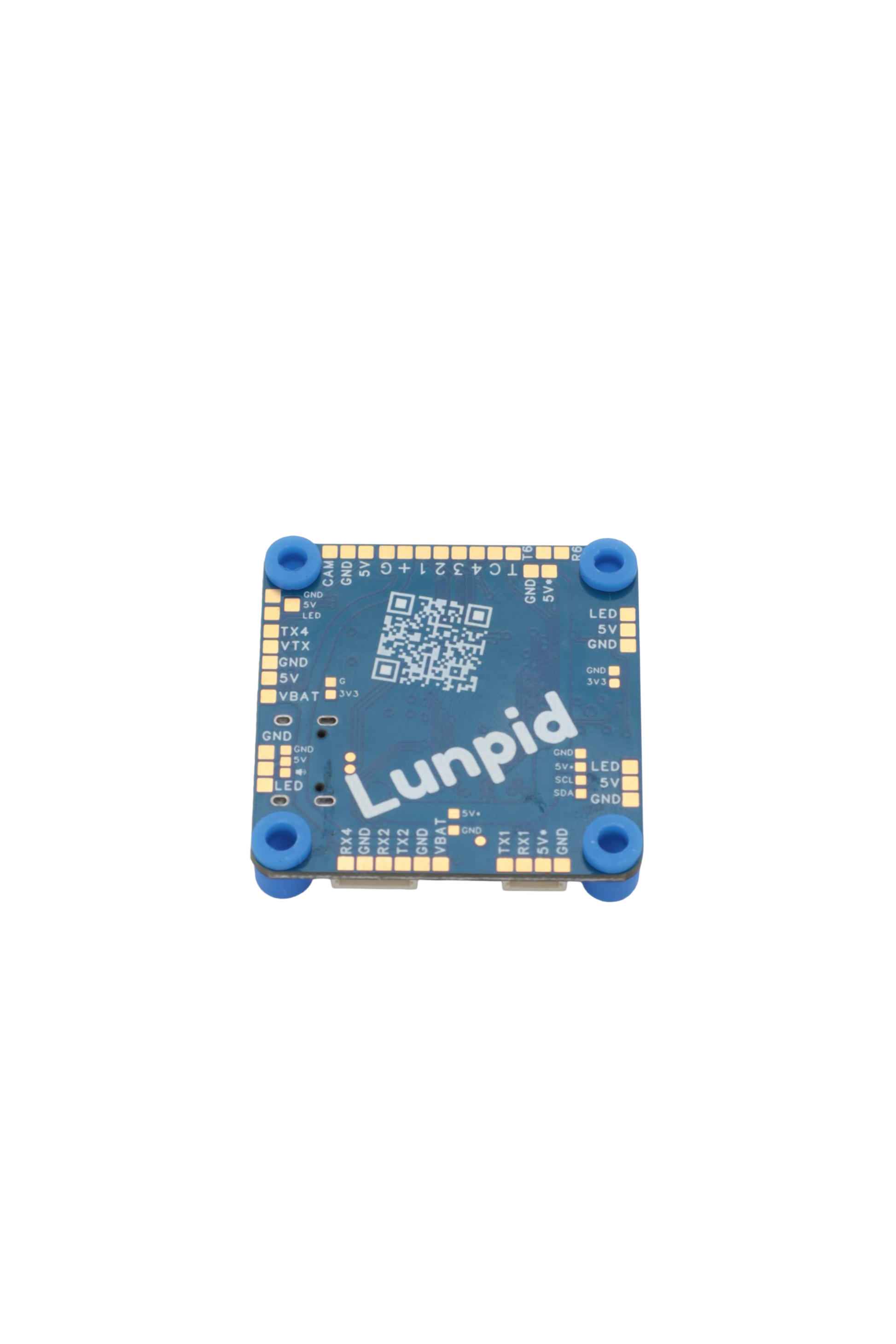

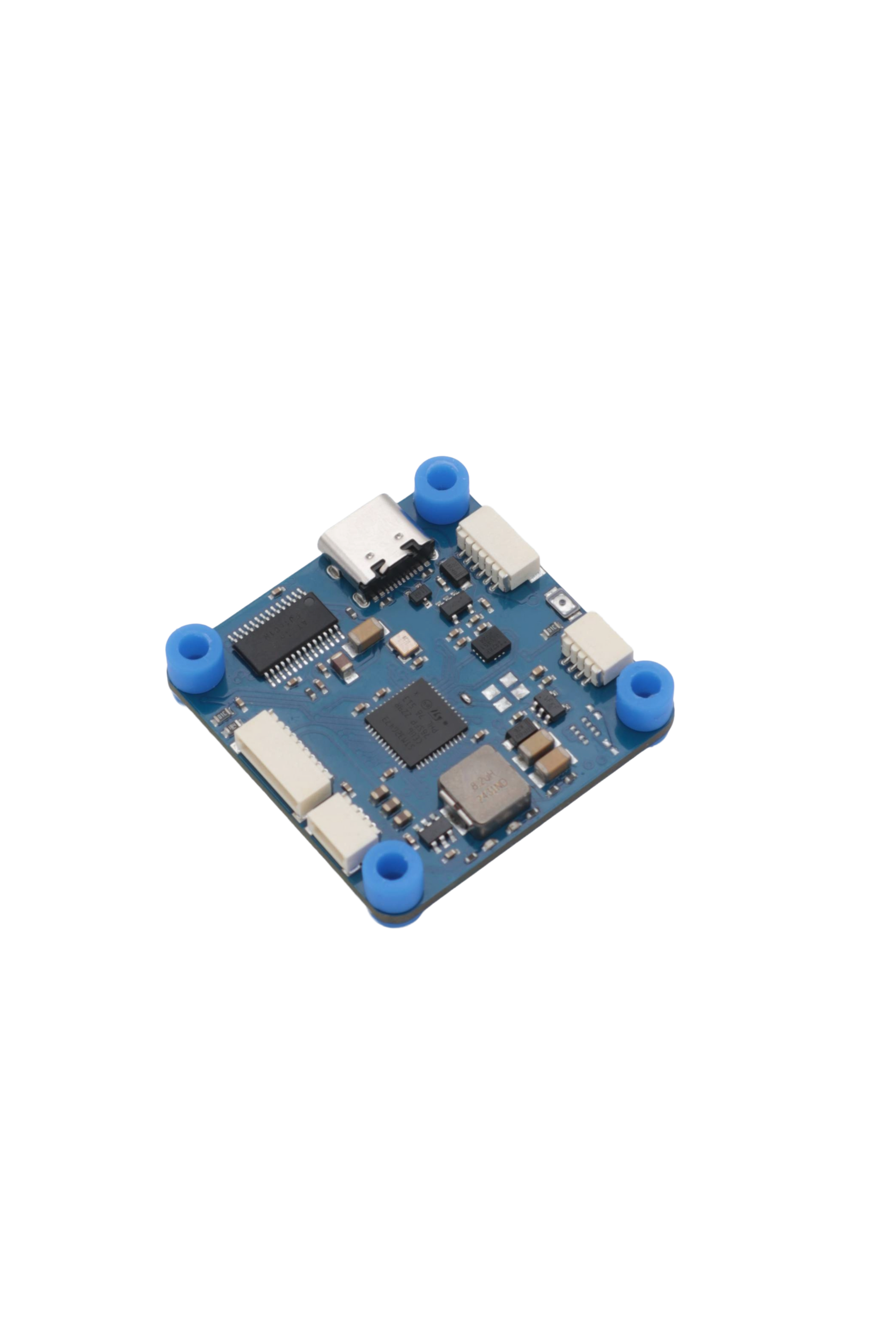

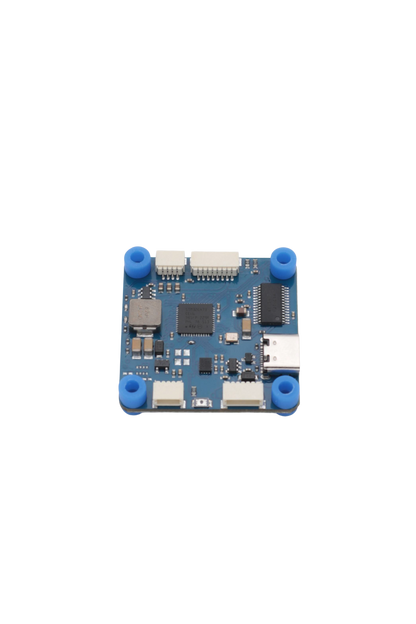

FC Bastille Analog

The FC Bastille Analog is a high-performance FPV flight controller that brings the core capabilities of the Bastille Freestyle to setups needing built-in analog OSD compatibility for classic analog VTXs. It features a STM32G4 processor and ICM-42688-P gyro with dedicated regulation, delivering clean, responsive gyro performance with minimal noise, along with solder-less headers and one-side pads for quick, clean installation.

Supporting 2S–12S (6 V–51 V) power input, it includes a reliable 5 V/3 A BEC, VBAT passthrough, and full connectivity with 5 UART + 1 I²C plus a 3.3 V output for all your RX, VTX, LED and other modules.

Key features:

• Integrated analog OSD – ideal for analog VTX systems.
• ICM-42688-P + STM32G4 for stable, precise flight control.
• Solder-less headers and one-side pads for easy build integration.
• 2S–12S wide voltage range.
• 5 V/3 A BEC + VBAT passthrough.
• Full connectivity: 5 UART + 1 I²C + 3.3 V.

What’s in the box

• 6 × Damper M3x7.5mm
• FC to ESC cable
