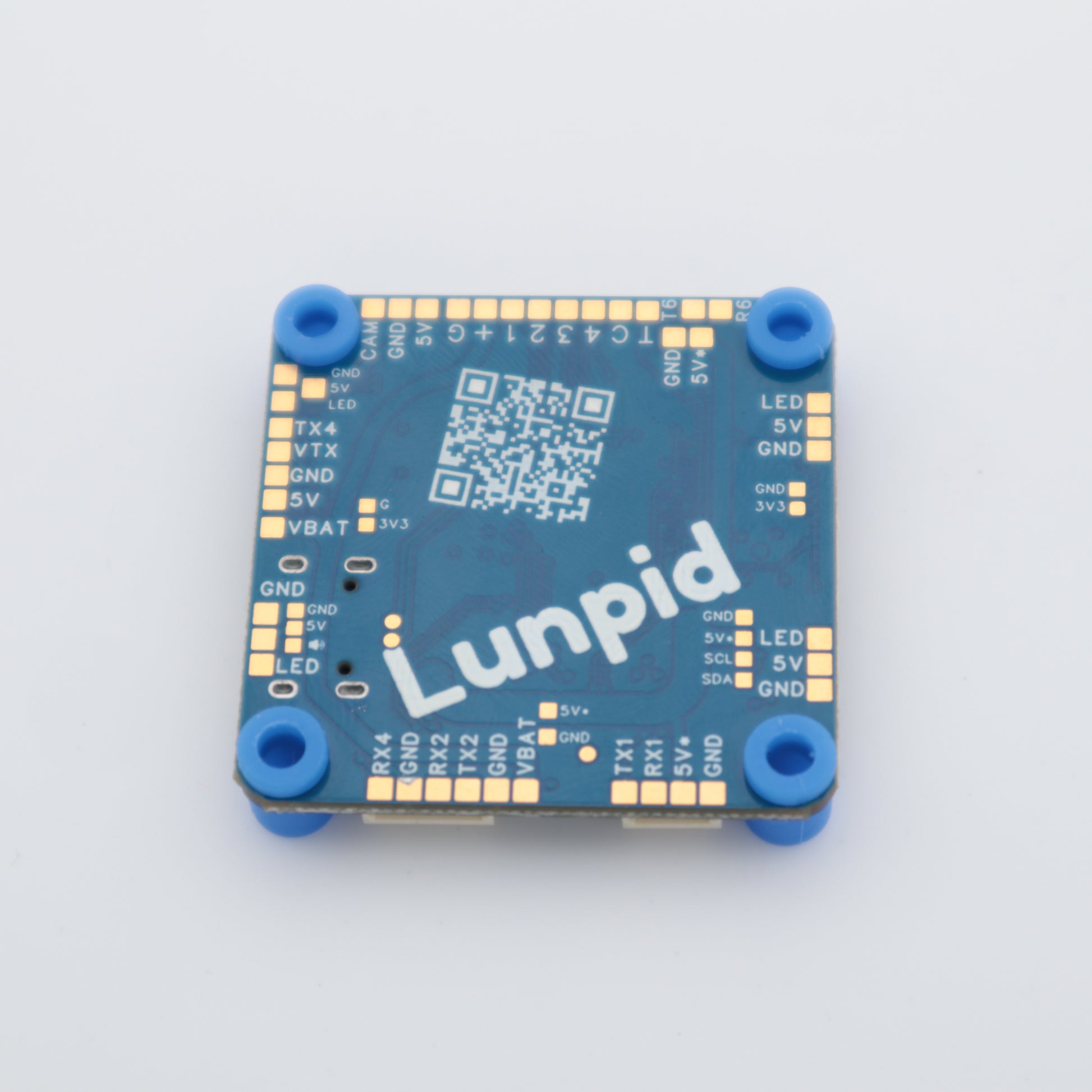

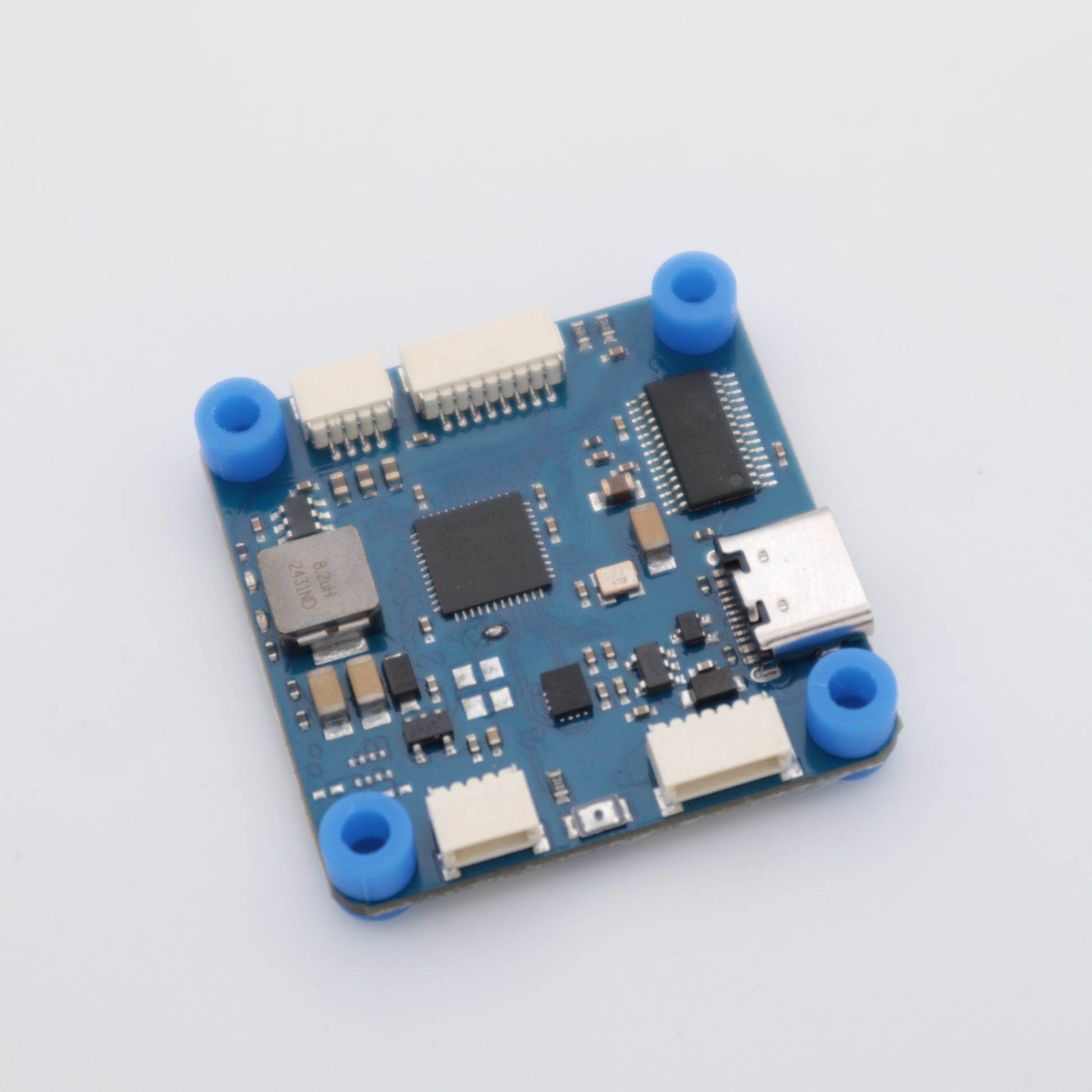

FC Bastille Analog

FC Bastille Analog: The Hybrid Freestyle & Long-Range Flight Controller

Built for die-hard analog VTX fans, the FC Bastille Analog takes the bulletproof reliability of the Freestyle version and integrates a built-in analog OSD. Perfect for aggressive FPV Freestyle or dedicated Long-Range builds, it delivers uncompromised performance. Its secret? A dedicated ultra-clean power supply for the gyro that eliminates noise, guaranteeing razor-sharp, locked-in handling. Plus, wiring your drone is an absolute pleasure thanks to its solder-less headers and smartly organized one-sided pads.

Key Features:

• Analog Optimized: Built-in analog OSD, perfect for classic VTX setups and long-range exploration.
• Superior Flight Quality: ICM-42688-P gyro paired with a dedicated ultra-low noise power supply for a pure signal.
• Ultra-Clean & Fast Setup: Smartly grouped one-sided solder pads and convenient solder-less headers.
• Top-tier Hardware: Next-generation STM32G4 processor.
• Extreme Voltage Range: Supports 2S to 12S LiPo batteries (6V – 51V).
• Full Connectivity: 5 UARTs, 1 I²C, 3.3V output, and VBAT passthrough.
• Robust Power: Ultra-reliable 5V/3A BEC to safely power all your peripherals.

What's in the box:

• 1x FC Bastille Analog Flight Controller
• 6x M3x7.5mm Dampers
• 1x FC to ESC cable

Ready to explore new horizons with your analog setup? Add the FC Bastille Analog to your cart today and fly with absolute peace of mind.

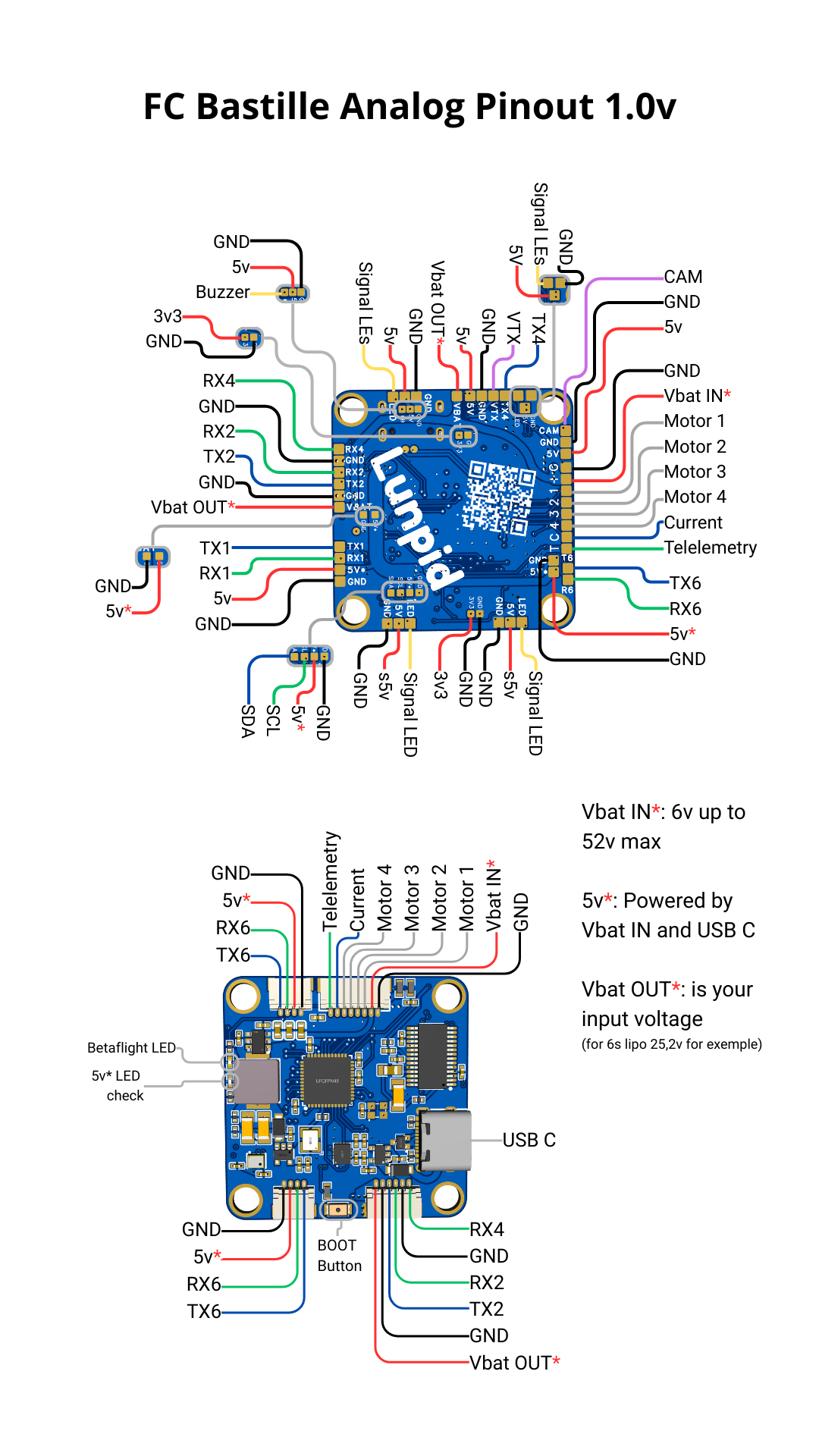

Documentation
